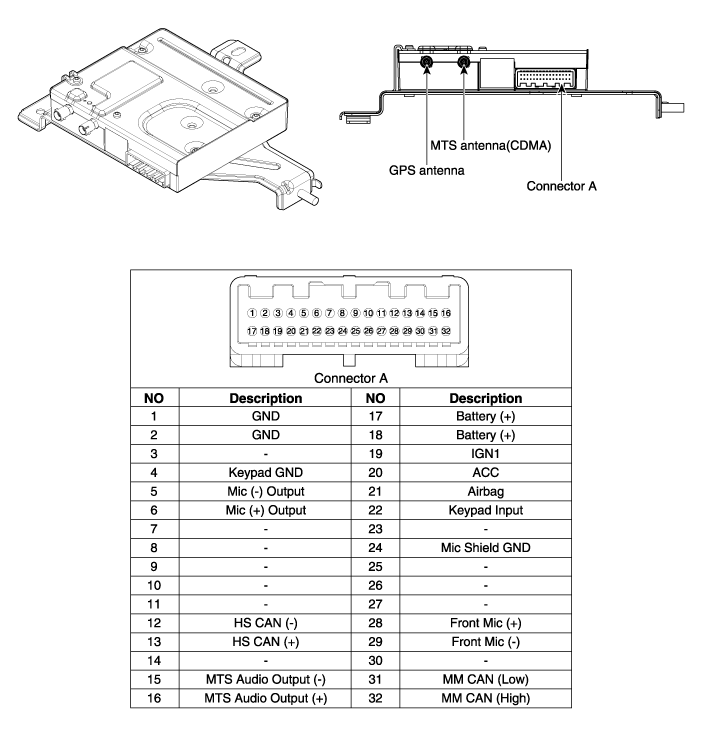

Hyundai Sonata LF: BLUE LINK / BLUE LINK Unit Components and Components Location

Description and Operation

Description Vehicle information systems (BLUE LINK) based on state-of-the-art IT systems, safety and security     The term "Telematics" is a combination of telecommunication and informatics...

BLUE LINK Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") 3...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Troubleshooting

Troubleshooting Problem Symptoms Table Use the table below to help you find the cause of the problem. The numbers indicate the priority of the like cause of the problem. Check each part in order. If necessary, replace these parts. SymptomSuspect AreaReferenceLower pedal or spongy pedal1...

Hyundai Sonata LF 2014-2019 Service Manual: Engine Control Module (ECM) Schematic Diagrams

ECM Terminal And Input/Output signal ECM Terminal Function Connector [C500-A] Pin No.DescriptionConnected to1Injector (Cylinder #3) [High] control outputInjector (Cylinder #3)2Injector (Cylinder #4) [High] control outputInjector (Cylinder #4)3Injector (Cylinder #2) [Low] control outputInjector (Cylinder #2)4Electric Waste Gate Actuator (EWGA) DC Motor output (+)Electric Waste Gate Actuator (EWGA) 5Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1] heater control outputHeated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1]6-?7-8-?9Sensor ground Electric Waste Gate Actuator (EWGA) 10-?11-?12-13-?14Cooling fan relay [High] control outputCooling fan relay [High]15CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control outputCVVT Oil Control Valve (OCV) [Bank 1/Exhaust]16Injector (Cylinder #2) [High] control outputInjector (Cylinder #2)17Injector (Cylinder #1) [High] control outputInjector (Cylinder #1)18Injector (Cylinder #3) [Low] control outputInjector (Cylinder #3)19Electric Waste Gate Actuator (EWGA) DC Motor output (-) Electric Waste Gate Actuator (EWGA) 20Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor2] heater control outputHeated Oxygen Sensor  (HO2S) [Bank 1/Sensor 2]21-?22-?23Engine Coolant Temperature Sensor (ECTS) signal inputEngine Coolant Temperature Sensor (ECTS)?24Sensor groundEngine Coolant Temperature Sensor (ECTS) 25-?26Fuel Tank Pressure Sensor (FTPS) signal inputFuel Tank Pressure Sensor (FTPS)27Fuel pump relay control output (NON-Smart key type)Fuel pump relayCanister Close Valve (CCV) control output  (Smart key type)Canister Close Valve (CCV)28-?29-30-?31Ignition coil (Cylinder #3) control outputIgnition coil (Cylinder #3)32Ignition coil (Cylinder #1) control outputIgnition coil (Cylinder #1)33Injector (Cylinder #1) [Low] control outputInjector (Cylinder #1)34Fuel Pressure Control Valve (FPCV) [High] control outputFuel Pressure Control Valve (FPCV)35ETC motor [-] control outputETC motor36-?37Knock Sensor (KS) signal inputKnock Sensor (KS)38Sensor groundKnock Sensor (KS)39-40Brake Light switch signal inputBrake switch41-42-43-?44-?45CVVT Oil Control Valve (OCV) [Bank 1/Intake] control outputCVVT Oil Control Valve (OCV) [Bank 1/Intake]46Ignition coil (Cylinder #4) control outputIgnition coil (Cylinder #4)47Ignition coil (Cylinder #2) control outputIgnition coil (Cylinder #2)48Injector (Cylinder #4) [Low] control outputInjector (Cylinder #4)49Fuel Pressure Control Valve (FPCV) [Low] control outputFuel Pressure Control Valve (FPCV)50ETC motor [+] control outputETC motor51-?52Electric Waste Gate Actuator (EWGA) Feed beck signal Electric Waste Gate Actuator (EWGA) 53Brake Test switch signal inputBrake switch54-?55-56Electric load signal input [Defrost]Alternator57Alternator COM signal outputAlternator58Engine speed signal outputCluster59Cooling fan relay [Low] control outputCooling fan relay [Low] 60- Connector [C500-K] Pin No...
