Hyundai Sonata: Engine Control System / Ambient Temperature Sensor (ATS) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Ambient Temperature Sensor (ATS) Schematic Diagrams

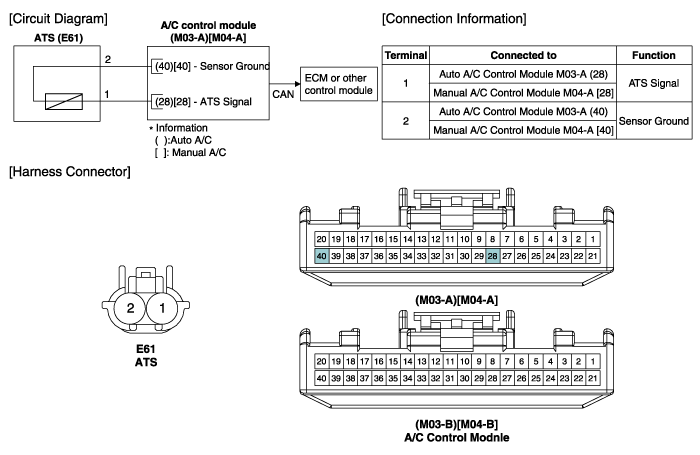

Circuit Diagram

Ambient Temperature Sensor (ATS) Specifications
Specification Temperature[°C(°F)]Resistance(k?) -40(-40)841.2~1019.3 -20(-4)263.8~306.50(32)92.4~102.810(50)57.0~62.220(68)36.2~38.840(104)15.3~16.750(122)10.3~11.460(140)7.1~8.080(17 ...

Ambient Temperature Sensor (ATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the ATS connector. 3. Measure resistance between the ATS terminals 1 and 2 [B1/S1]. 4. Check that the resistance is within the ...
