Hyundai Sonata: Heating and Air Conditioning / Temperature control

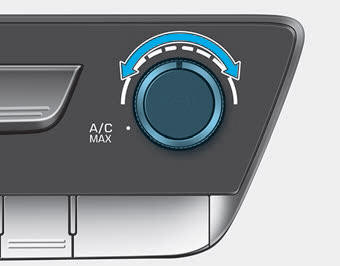

The temperature will increase by turning the knob to the right.

The temperature will decrease by turning the knob to the left.
