Hyundai Sonata: Seat Belts / Seat Belt Warning Light

Seat belt warning light (for driver's seat)

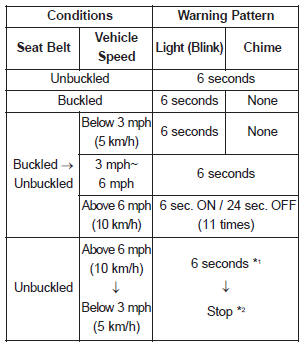

The driver's seat belt warning light and chime will come on according to the following table when the ignition switch is in the ON position.

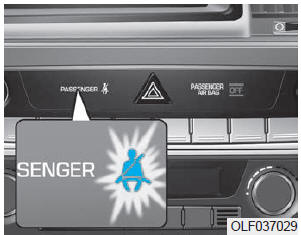

Seat belt warning light (for front passenger's seat)

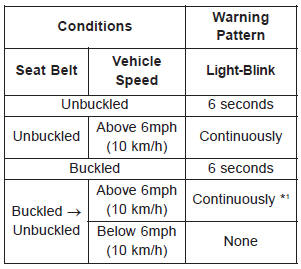

The front passenger's seat belt warning light will activate to the following table when the ignition switch is in "ON" position.

Seat Belt Safety Precautions
Always fasten your seat belt and make sure all passengers have fastened their seat belts before starting any trip. Air bags are designed to supplement the seat belt as an additional safety device, b ...

Seat Belt Restraint System
...
