Hyundai Sonata: Engine Control System / RCV Control Solenoid Valve Schematic Diagrams

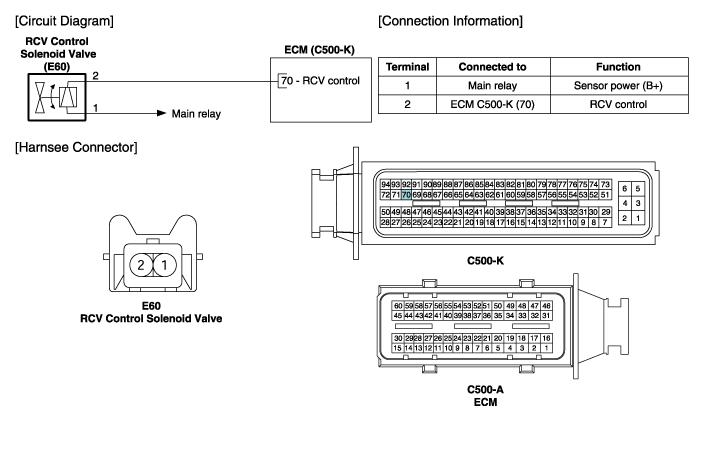

Circuit Diagram

RCV Control Solenoid Valve Specifications
Specification ItemSpecificationCoil Resistance(?)28.3 ~ 31.1 [20°C(68°F)] ...

RCV Control Solenoid Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the RCV connector. 3. Measure resistance between the RCV terminals 1 and 2. 4. Check that the resistance is within the specif ...
