Hyundai Sonata LF: Air Conditioning System / In-car Sensor Repair procedures
| Diagnosis With GDS |
| 1. |
The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
? The diagnostic system (GDS) provides the following information.
(1) Self diagnosis: Checking the failure code (DTC) and display.
(2) Current data: Checking the system input/output data state.
(3) Actuation test: Checking the system operation condition.
(4) Additional function: Other controlling such as he system option and zero point adjustment. |
| 2. |
Select the 'Car model' and the system to be checked in order to check the vehicle with the tester. |
| 3. |

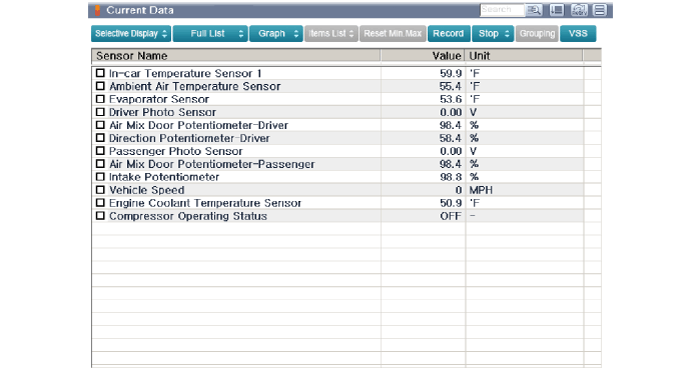

Select the 'Current data' menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the In-car Sensor can be checked.
|
In-car Sensor Description and Operation
Description The sensor contains a thermistor which measures the temperature of the inside. The signal decided by the resistance value which changes in accordance with perceived inside temperature, is delivered to heater control unit and according to this signal the control unit regulates incar temperature to intended value...
Photo Sensor Description and Operation
Description The photo sensor is located at the center of the defrost nozzles. The photo sensor contains a photovoltaic (sensitive to sunlight) diode...
Other information:
Hyundai Sonata LF 2014-2019 Service Manual: CVVT & Camshaft Description and Operation
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load. By controlling CVVT, the valve over-lap or under-lap occurs, which makes better fuel economy and reduces exhaust gases (NOx, HC) and improves engine performance through reduction of pumping loss, internal EGR effect, improvement of combustion stability, improvement of volumetric efficiency, and increase of expansion work...
Hyundai Sonata LF 2014-2019 Service Manual: Description and Operation
Description The smart cruise control system allows a driver to program the vehicle to control the speed and following distance detecting the vehicle ahead without depressing the brake pedal and the accelerator pedal. 1. Cruise speed control: The vehicle maintains the selected speed if there are not vehicles ahead...
