Hyundai Sonata: Fuel Filler Door / Emergency fuel filler door release
.jpg)

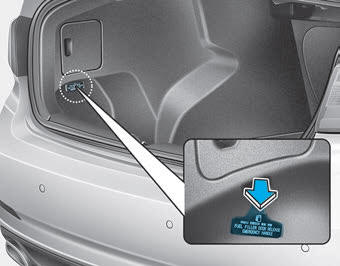

If the fuel filler door does not open using the remote fuel filler door release button, you can open it manually. Pull the release located on the left side of the trunk compartment.
Closing the fuel filler door
1. To install the fuel tank cap, turn it clockwise until it "clicks" one time.
2. Close the fuel filler door until it is latched securely.
WARNING
Gasoline is highly flammable and explosive. Failure t ...
