Hyundai Sonata: If you Have a Flat Tire / Components of the Tire Mobility Kit

Hyundai Sonata LF 2014-2019 Owners Manual / What to do in an emergency / If you Have a Flat Tire / Components of the Tire Mobility Kit

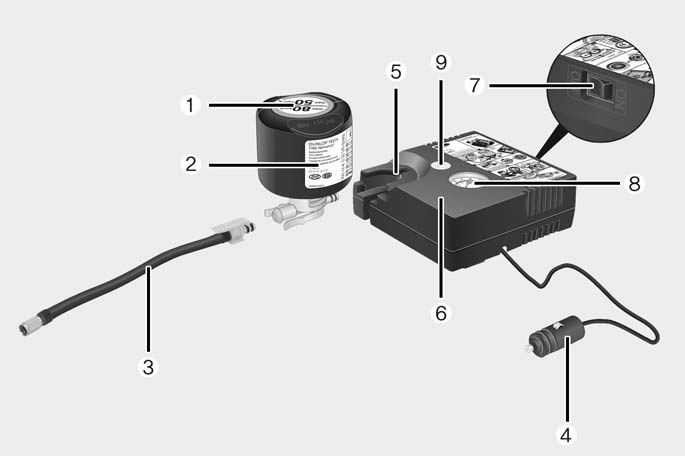

1. Speed- restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose from sealant bottle to wheel
4. Connectors and cable for the power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the tire inflation pressure
9. Button for reducing tire inflation pressure

Connectors, cable and connection hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

WARNING

Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING

Sealant

Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.
