Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Panorama Sunroof / Components and Components Location

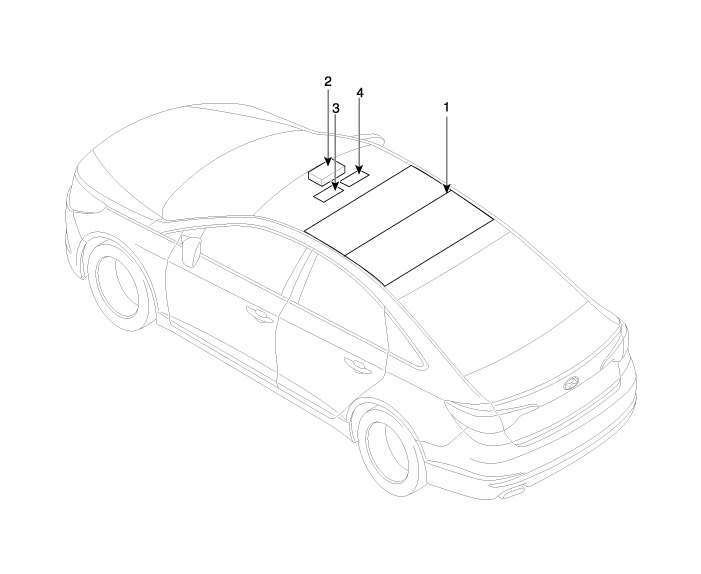

Component Location

1. Panorama sunroof
2. Panorama sunroof switch

3. Panorama sunroof motor & controller
4. Roller blind motor & slave controller

Schematic Diagrams

Circuit Diagram NoSunroof wiringconnector(Vehicle side)Sunroof wiringconnector(Motor)Panorama glass motor(Master)Blind motor(Slave)1GND 1 GND 1GND 22Glass statussignal / tool(parameter)Glass sta ...
