Hyundai Sonata: Electronic Parking Brake (EPB) / Applying the parking brake
.jpg)

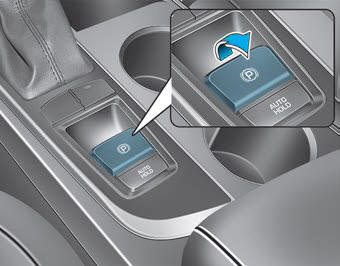

To apply the EPB (Electronic Parking Brake):
1. Depress the brake pedal.
2. Pull the EPB switch upwards.
Make sure the Parking Brake Warning Light comes on.
The EPB is applied automatically if the [AUTO HOLD] switch is on when the engine is turned off. However, if you press the EPB switch within one second after the engine is turned off, the EPB will not be applied.
WARNING
To reduce the risk of SERIOUS INJURY or DEATH, do not operate the EPB while the vehicle is moving except in an emergency situation. It could damage the brake system and lead to an accident.
Releasing the parking brake
To release the EPB (Electronic Parking Brake), press the EPB switch in the following
condition:
Place the Engine Start/Stop button in the ON position.
Depress the brake pedal.
Make sure the Park ...
