Hyundai Sonata LF: Seat Electrical / Air Ventilation Seat Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Schematic Diagrams

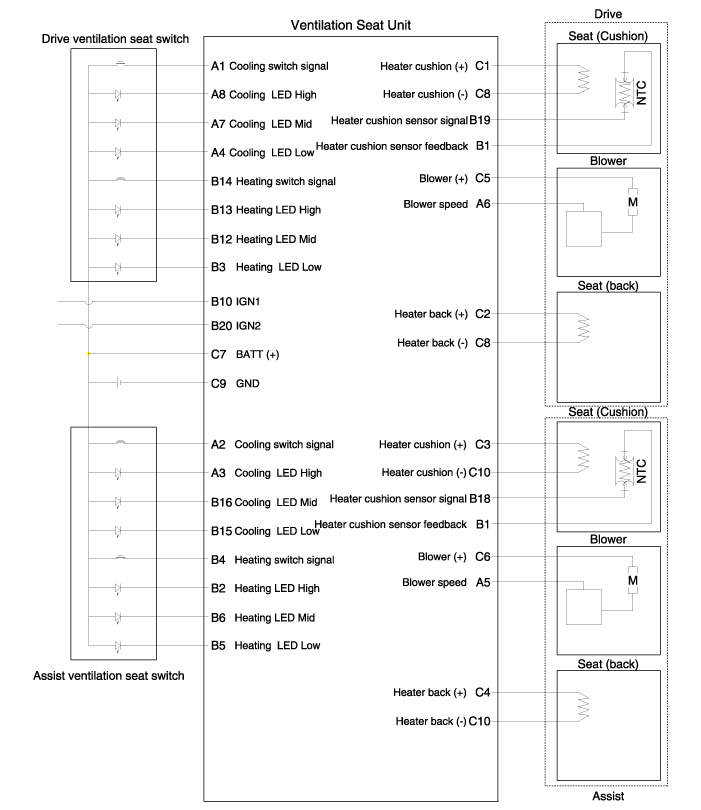

Circuit Diagram

    Air Ventilation Seat Components and Components Location

    C..

    Air Ventilation Seat Repair procedures

    Removal [Ventilation Blower] 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat. (Refer to Body - "Front Seat Assembly") 3...
